Number of bikes
2
Foldable
✓
Tiltable
✓
Diamant SG2
The Diamant SG2 is a reliable bike rack designed to carry two bikes and is specifically designed for electric bikes.
The Diamant SG2 is easy to carry and store thanks to the convenient folding system and the included storage cover. This bike carrier is quickly and easily mounted on the tow bar by a patented, lockable quick-release coupling. Lighting operates via a combined 7/13-pin (Jaeger) plug and includes rear fog light and reversing lights (via 13-pin plug).
The bike carrier has a tilt mechanism and flexible, lockable and removable frame holders. The SG2 is secured against theft by means of a lock in the quick-release coupling.
Specifications for the
Diamant SG2
| Number of bikes | 2 |
| Own weight | Ca. 17 kg |
| Max. carrying load | 60 kg |

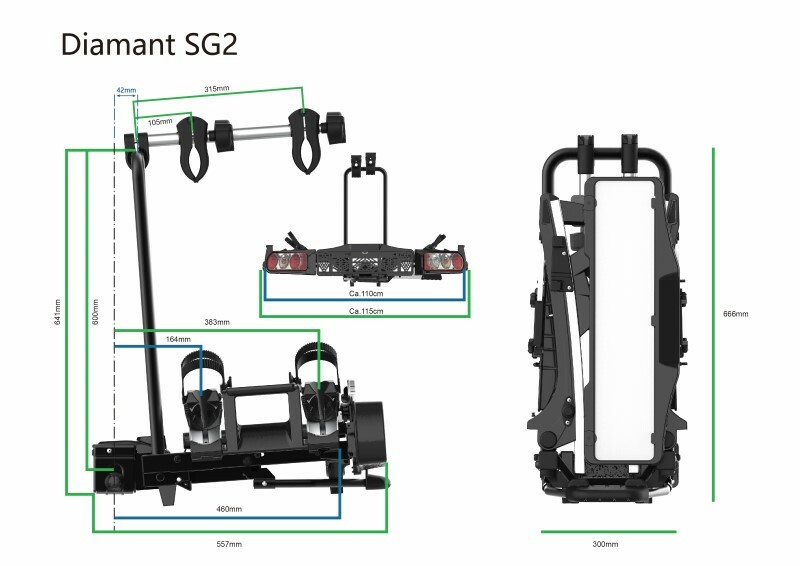

| Dimensions unfolded | 115 x 67 x 54 cm |
| Dimensions when folded | 30 x 67 x 55,5 cm |
| Max. wheelbase | 125 cm |
| Bike frame circumference | 22-75 mm |
| Maximum bicycle tire width | 5,5 cm |
| Wheel holder distance | 22 cm |
| Fitting to a tow bar | Hefboom met slot |
| Type of plug connection | 7- en 13 polige stekker |
| Mounting of bicycle frame | Frame holder with clamp |
| Bike frame attachment | Framehouder met klem |
| Lighting | Halogeen |
| Color | Zilver |
| Warranty | 3 jaar |
| Optional | Oprijgoot, brede wielstoppers, wandhouder |
| Transport wheels | ✗ |
| Suitable for E-Bikes | ✓ |
| Wheel protection | ✓ |
| Anti-theft lock | ✓ |
| Tiltable | ✓ |
| Extendable | ✗ |
| Fixed frame holders | ✗ |
| Removable frame holders | ✓ |
| Single-key system | ✓ |
