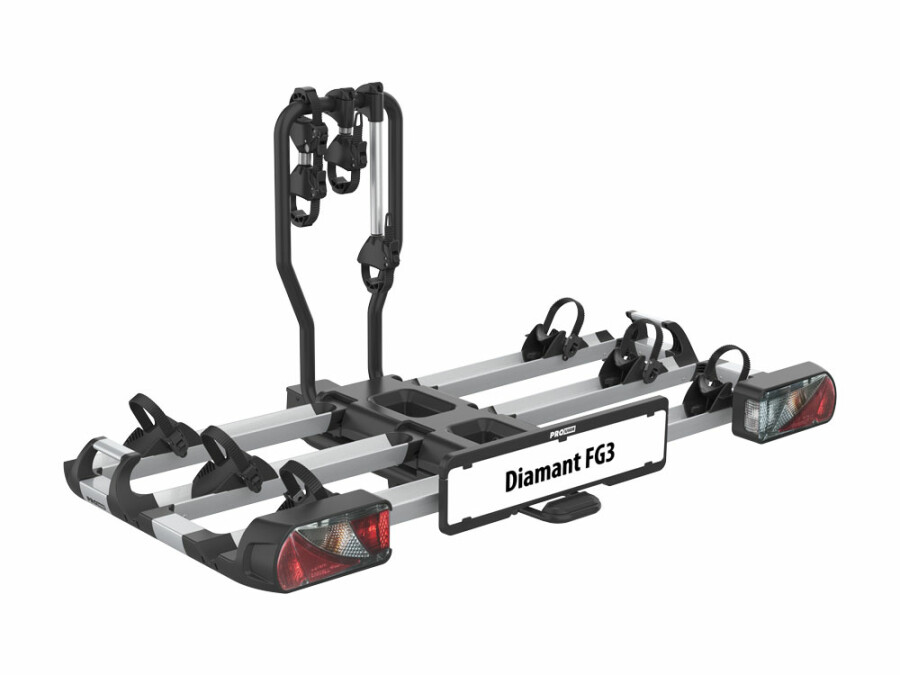

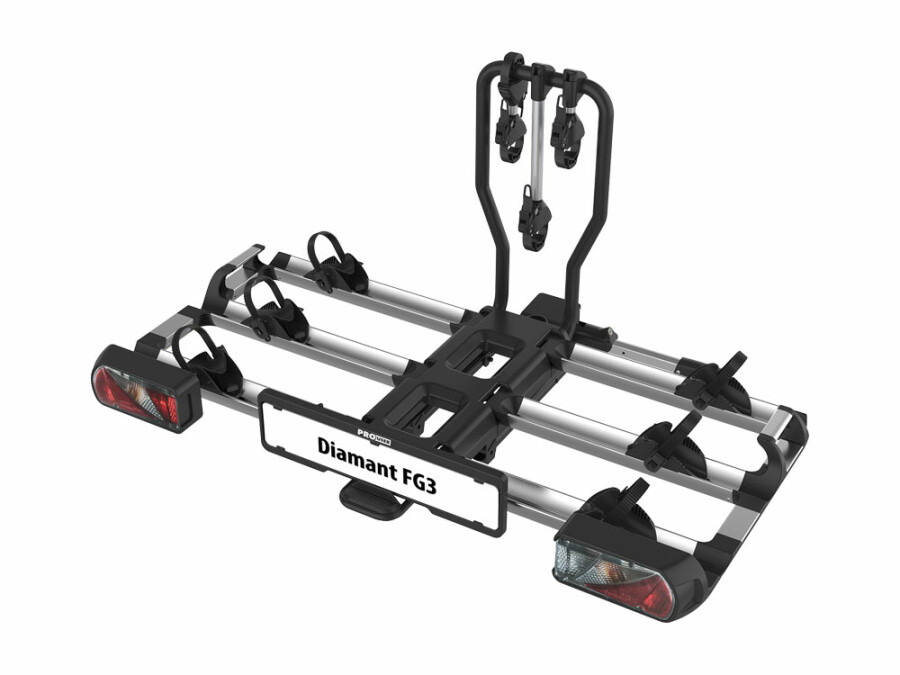

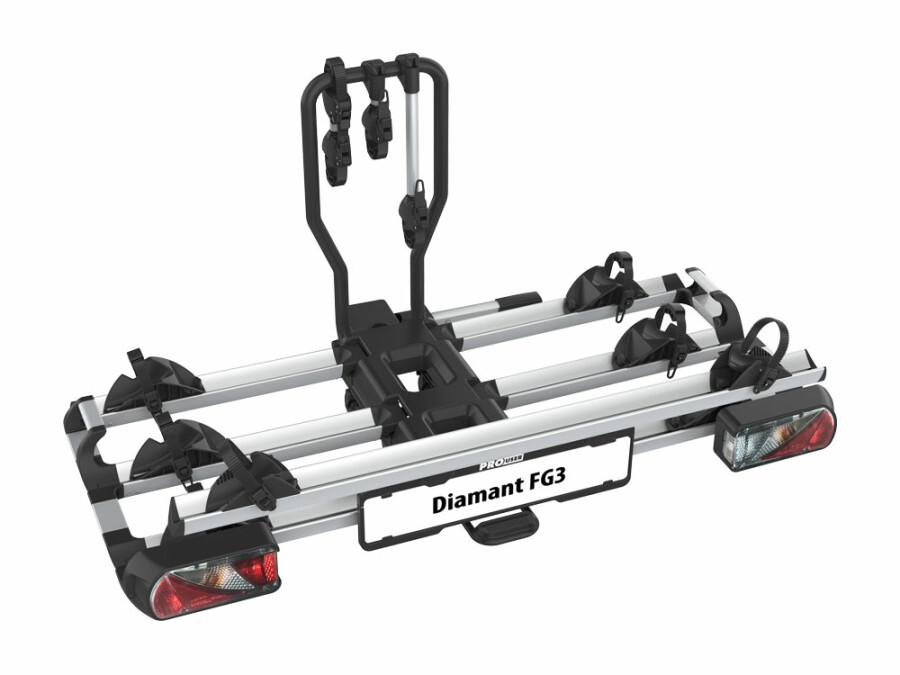

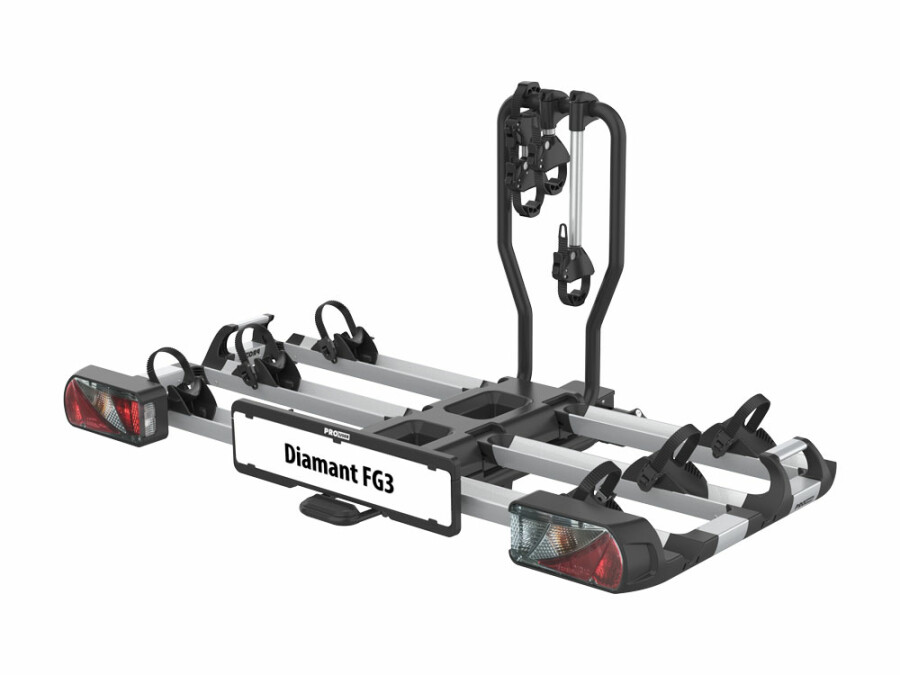

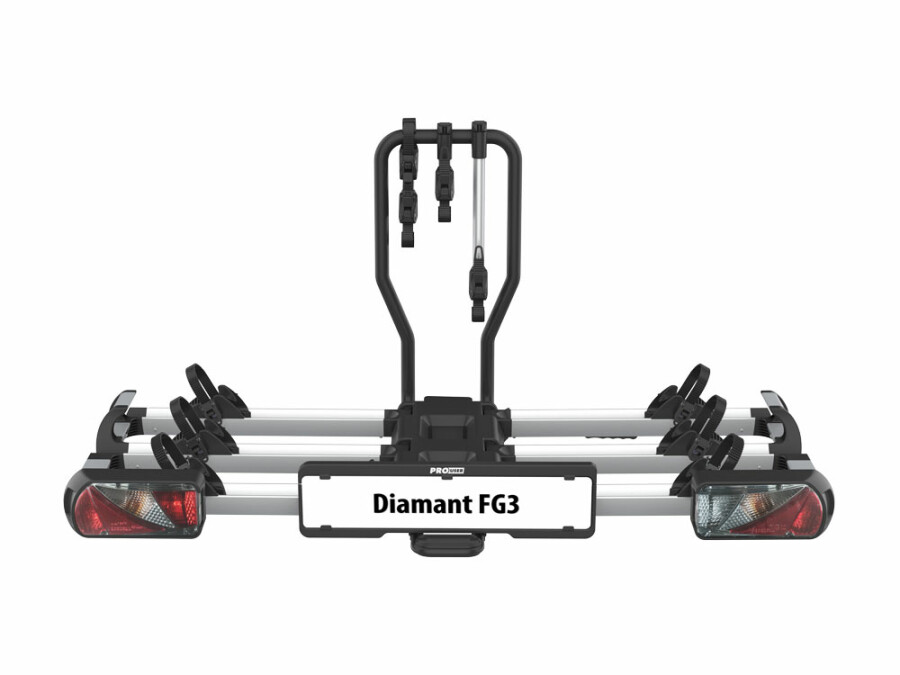

Diamant FG3
This modern bike carrier with sleek design is designed to carry 3 bikes. A unique feature of this carrier is that it is fitted with wide wheel stoppers as standard. This makes it virtually suitable for any tyre width!
The wide U-bracket and frame holders with flexible straps ensure that the FG3 fits (almost) all bike frames.

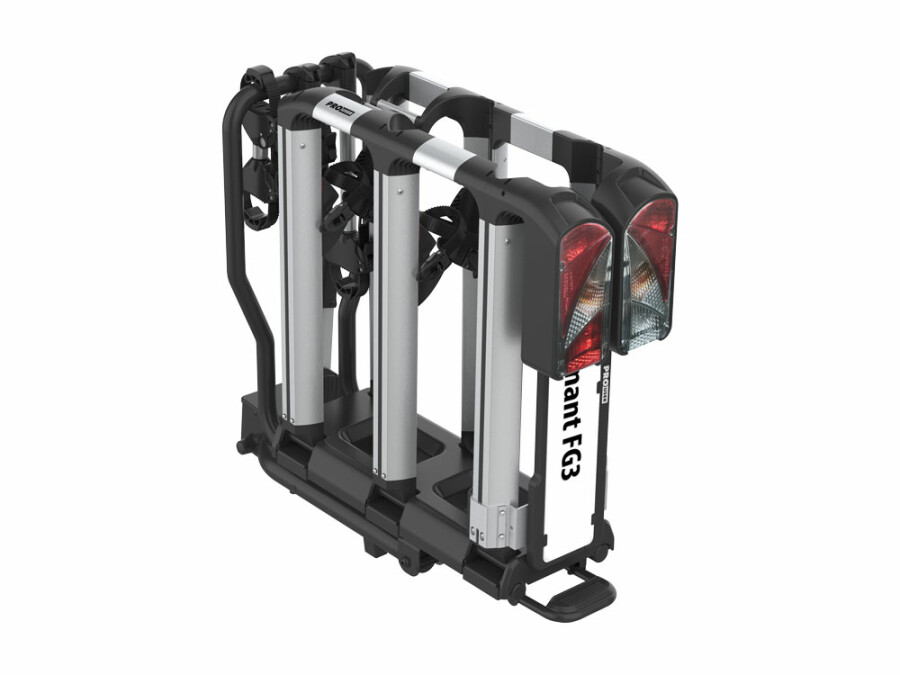

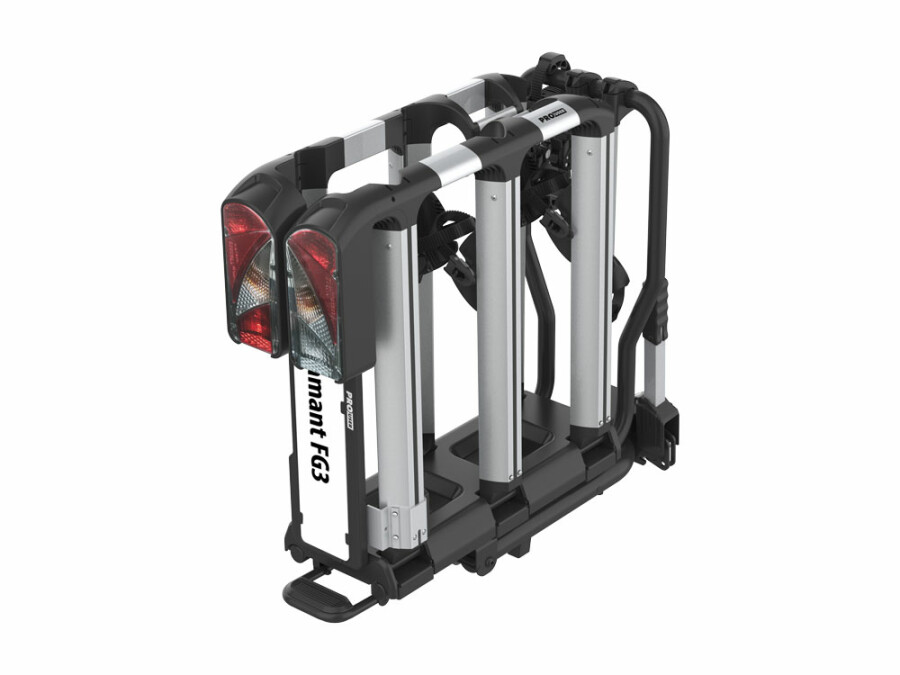

FG3 has a patented quick-release coupling, is tiltable and foldable, and can be used straight out of the box!
Optionally available for this bike carrier is:
⦁ bike adapter for a 4th bike (art. no. 91749)
⦁ ride-on ramp (art. no. 19750)
⦁ wheel set (art. no. 91765)
⦁ bike frame adapter (art. no. 99745)
⦁ storage cover (91769)
Please note! The maximum carrying weight is a maximum of 60 kg. Please bear this in mind when transporting e-bikes.
Specifications for the
Diamant FG3
| Number of bikes | 3 |
| Own weight | 22,3 kg |
| Max. carrying load | 60 kg |

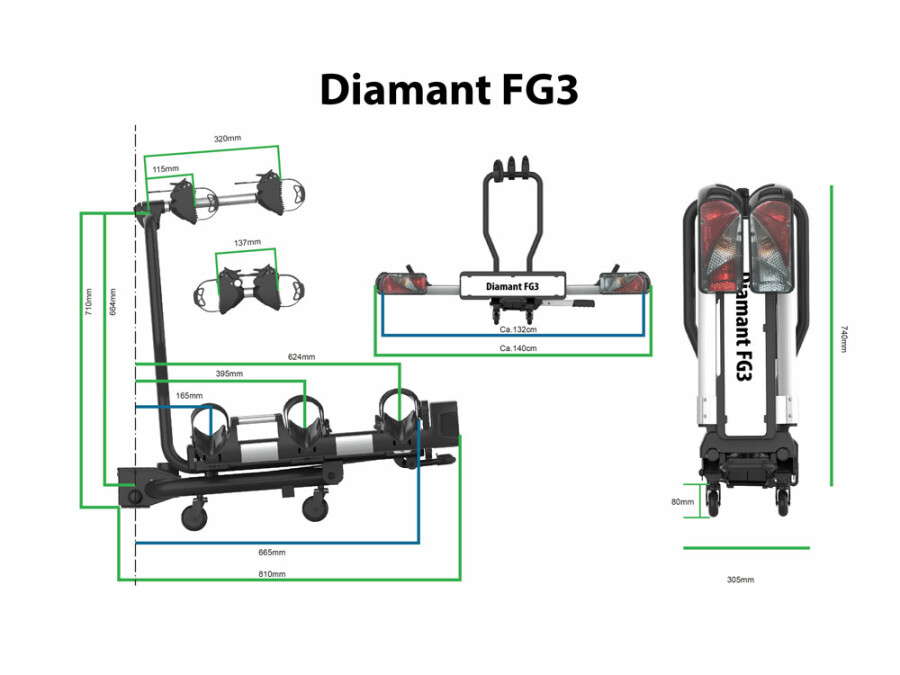

| Dimensions unfolded | 140 x 74 x 82 cm |
| Dimensions when folded | 31 x 74 x 82 cm |
| Max. wheelbase | 135 cm |
| Bike frame circumference | Max. 35 cm |
| Maximum bicycle tire width | 8 cm |
| Wheel holder distance | 23 cm |
| Fitting to a tow bar | Hefboom met slot |
| Type of plug connection | 7- en 13 polige stekker |
| Mounting of bicycle frame | Strap framehouder |
| Bike frame attachment | Strap-systeem |
| Lighting | Halogeen |
| Color | Zilver |
| Warranty | 3 jaar |
| Optional | Opberghoes, oprijgoot, transportwielen, wandhouder |
| Transport wheels | Optioneel |
| Suitable for E-Bikes | ✓ |
| Wheel protection | ✓ |
| Anti-theft lock | ✓ |
| Tiltable | ✓ |
| Extendable | ✗ |
| Fixed frame holders | ✗ |
| Removable frame holders | ✓ |
| Single-key system | ✓ |
