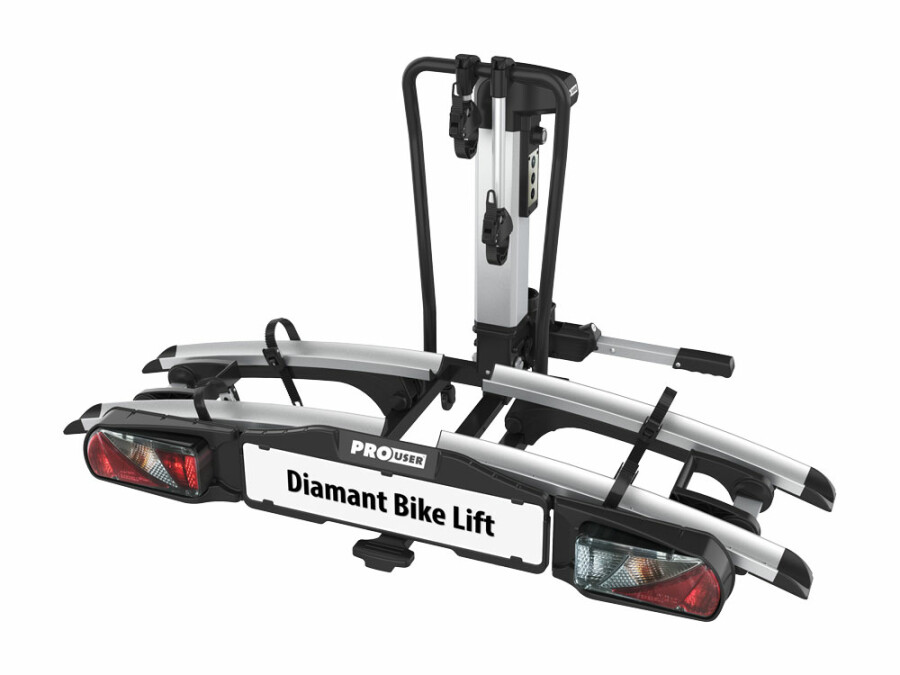

Diamant Bike Lift
Unique in its kind!

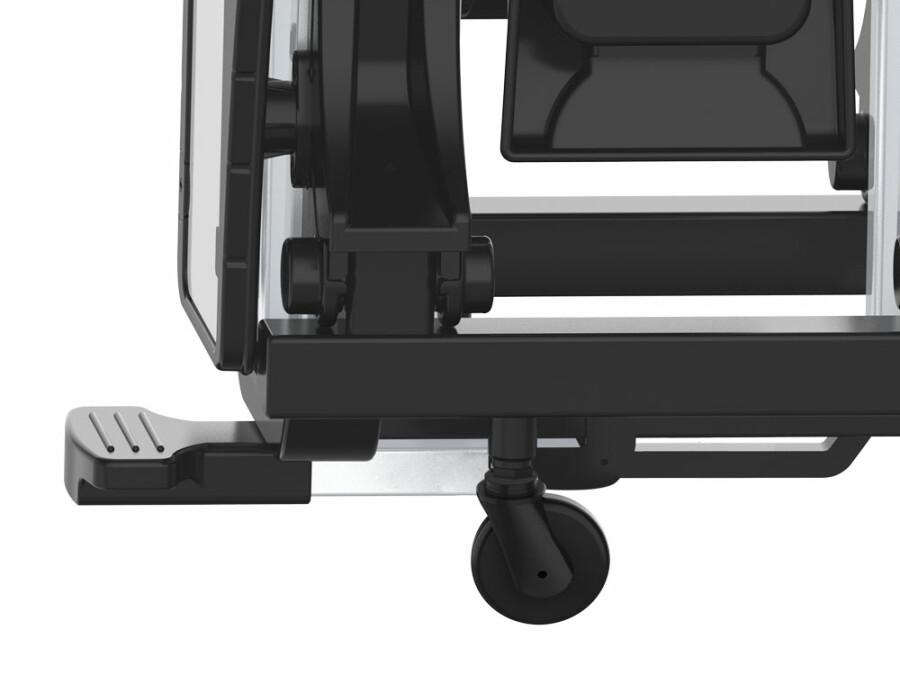

The foldable bike carrier with an electric lift system. With its easy-to-use control panel, the Diamant Bike Lift can be raised or lowered effortlessly. It is even equipped with wheels, so there’s no need for heavy lifting anymore.
Perfect for transporting two e-bikes, this carrier offers maximum convenience with its tilt and folding function, wide and stable aluminium wheel tracks, removable Easy Fix frame holders, and a practical storage bag.
The frame holders and the patented quick coupling system are lockable, providing extra security. Both the 5-function lighting and the lift system operate via a 13-pin (Jaeger) plug. For smooth operation, a fully wired 13-pin connection with constant power supply on the car is required.
Specifications for the
Diamant Bike Lift
Weight | Ca. 25 kg |
Material | Coated steel + aluminium |
Number of bikes | 2 |
Suitable for E-Bikes | ✓ |
Max. carrying load | 60 kg |
Foldable | ✓ |
Bike frame diameter | 22-75 mm |
Max. wheelbase | 1250 mm |
Wheel holder distance | 250 mm |
Mounting of bicycle frame | Using lockable band frame holders |
Tiltable | ✓ |
Maximum bicycle tire width | 65 mm |
